เครื่องควบคุมความชื้น และอุณหภูมิ ในตัวเดียวกัน

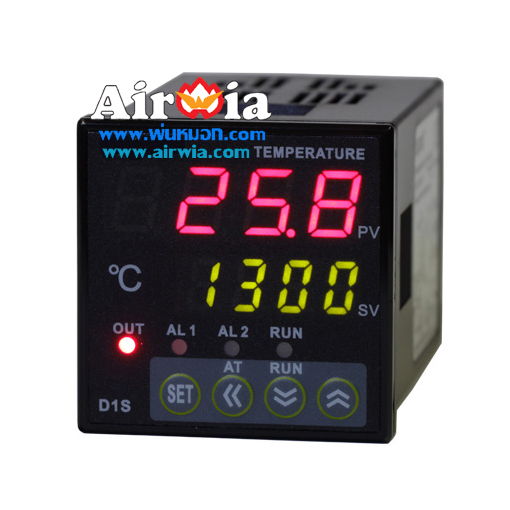

Model: D1S-2R-220
Description
DIN(48X48mm) Temperature Controller
Support multi sensor input (K,S,Wre,T,E,J,B,N,CU50,PT100)
Wide control range -50～1300℃(K sensor)
Indication and control accuracy 0.1℃, ±0.2%FS
PID and ON/OFF control mode
Built-in digital filter reduce interfere
Auto turning technology, parameter lock
Power: AC 110-240V
Output: Relay, Alarm 1: Relay

-----------------------------------------------------------

Model: D1S-2R-24
Description
DIN(48X48mm) Temperature Controller
Support multi sensor input (K,S,Wre,T,E,J,B,N,CU50,PT100)
Wide control range -50～1300℃(K sensor)
Indication and control accuracy 0.1℃, ±0.2%FS
PID and ON/OFF control mode
Built-in digital filter reduce interfere
Auto turning technology, parameter lock
Power: AC/DC 12-24V
Output: Relay, Alarm 1: Relay

--------------------------------------------------------------------------

Model: D1S-VR-220
Description
DIN(48X48mm) Temperature Controller
Support multi sensor input (K,S,Wre,T,E,J,B,N,CU50,PT100)
Wide control range -50～1300℃(K sensor)
Indication and control accuracy 0.1℃, ±0.2%FS
PID and ON/OFF control mode
Built-in digital filter reduce interfere
Auto turning technology, parameter lock
Power: AC 110-240V
Output: Voltage 12V for SSR, Alarm 1: Relay

---------------------------------------------------------------------

Model: D1S-VR-24
Description
DIN(48X48mm) Temperature Controller
Support multi sensor input (K,S,Wre,T,E,J,B,N,CU50,PT100)
Wide control range -50～1300℃(K sensor)
Indication and control accuracy 0.1℃, ±0.2%FS
PID and ON/OFF control mode
Built-in digital filter reduce interfere
Auto turning technology, parameter lock
Power: AC/DC 12-24V
Output: Voltage 12V for SSR, Alarm 1: Relay

------------------------------------------------------------------------

Model: D1S-CR-220
Description
DIN(48X48mm) Temperature Controller
Support multi sensor input (K,S,Wre,T,E,J,B,N,CU50,PT100)
Wide control range -50～1300℃(K sensor)
Indication and control accuracy 0.1℃, ±0.2%FS
PID and ON/OFF control mode
Built-in digital filter reduce interfere
Auto turning technology, parameter lock
Power: AC 110-240V
Output: Current 4-20mA, Alarm 1: Relay

-----------------------------------------------------

Model: D1S-CR-24
Description
DIN(48X48mm) Temperature Controller
Support multi sensor input (K,S,Wre,T,E,J,B,N,CU50,PT100)
Wide control range -50～1300℃(K sensor)
Indication and control accuracy 0.1℃, ±0.2%FS
PID and ON/OFF control mode
Built-in digital filter reduce interfere
Auto turning technology, parameter lock
Power: AC/DC 12-24V
Output: Current 4-20mA, Alarm 1: Relay
